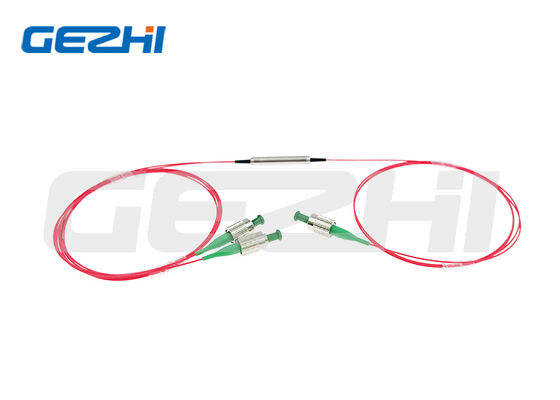

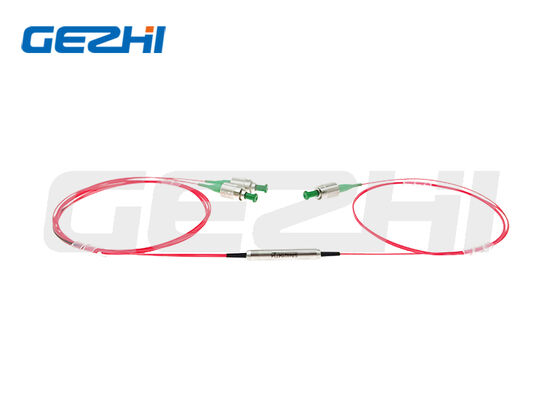

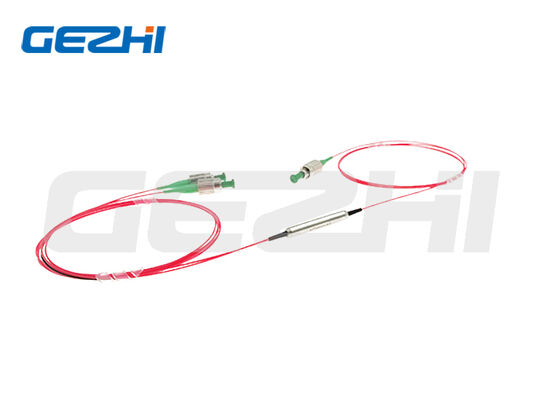

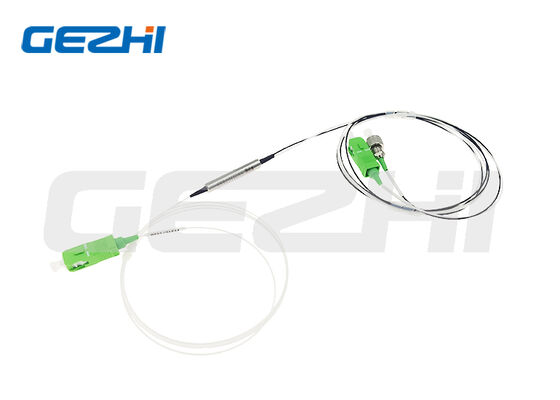

PM Filter WDM Polarization Maintaining WDM Filter with Ultra Low Insertion Loss High Polarization Extinction Ratio and Multiple Wavelength Combinations

Name: PM Filter WDM Polarization Maintaining WDM Filter with Ultra Low Insertion Loss High Polarization Extinction Ratio and Multiple Wavelength Combinations
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: PMFWDM-XXXX-XX-XX-X-XX-XX-XX-XX-XX
Price: 438.00 USD
Availability: InStock

Markenbezeichnung:	GEZHI or OEM
Modellnummer:	PMFWDM-XXXX-XX-XX-X-XX-XX-XX-XX-XX
MOQ:	1 Stk
Preis:	US$188-US$688
Lieferzeit:	2-3 Wochen
Zahlungsbedingungen:	T/T, Western Union

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China

Zertifizierung:

CE RoHS,ISO9001

Dokumentieren:

PM Filter WDM.pdf

Einfügedämpfung:

≤0,8 dB (Pass-Port), ≤0,5 dB (Reflect-Port)

Isolierung:

≥25~30 dB (Pass), ≥12~15 dB (Reflektieren)

Löschungs-Verhältnis:

≥18~20 dB

Rückflussverlust:

≥50 dB

Maximale Belastbarkeit:

0,5 / 1 / 5 W; >10W mit Kühlkörper

Betriebstemperatur:

-5 ~ +75 ℃

Verpackung Informationen:

Papierbox

Versorgungsmaterial-Fähigkeit:

2000 Stück pro Monat

Beschreibung des Produkts

1. Product Overview

Product Name

Polarization Maintaining Filter WDM / PM Filter WDM

Manufacturer

Gezhi Photonics Co.,Ltd

Our PM Filter WDM is a professional polarization-maintaining wavelength division multiplexer, designed to separate/combine two different wavelength optical signals in polarization-maintaining fiber circuits. We support multiple mainstream wavelength combinations for fiber laser, optical communication, CATV and passive optical network systems. Standard package Φ5.5×35mm, customizable fiber pigtail, connector and high-power heat sink housing.

Available Wavelength Combinations

980/1030nm
980/1064nm
980/1550nm
1064/1550nm
1310/1550nm
1480/1550nm
2000/1550nm

2. Core Product Features

✅ Ultra Low Insertion Loss
✅ High Return Loss ≥50dB
✅ High Polarization Extinction Ratio
✅ Stable Wavelength & Loss Under Temperature Variation
✅ Multiple CW power options: 0.5W / 1W / 5W (10W+ heat sink package available)
✅ Compact Φ5.5×35mm metal package
✅ Custom PM fiber, single-mode fiber, pigtail length & connectors
✅ Wide operating temperature range -5℃ ~ +75℃

3. Main Applications

CATV Fiber Optical Transmission System
WDM Optical Multiplexing & Demultiplexing System
EPON / GPON Passive Optical Network
Fiber Laser Pump Combiner & Signal Separation
Polarization Maintaining Fiber Test Equipment
2μm Mid-infrared Optical Communication (2000/1550nm model)

4. Complete Technical Specifications

Standard Parameter Table

Parameter	Unit	Standard Performance
Pass Port Insertion Loss	dB	≤0.8
Reflect Port Insertion Loss	dB	≤0.5 (2000/1550: ≤0.8)
Pass Isolation @Reflect Wavelength	dB	≥25~30
Reflect Isolation @Pass Wavelength	dB	≥12~15
Extinction Ratio	dB	≥18~20
Return Loss	dB	≥50
Wavelength Thermal Stability	nm/℃	≤0.003
Insertion Loss Thermal Stability	dB/℃	≤0.005
CW Max Power Handling	W	0.5 / 1 / 5; >10W with heat sink package
Tensile Load	N	≤5
Operating Temperature	℃	-5 ~ +75
Storage Temperature	℃	-40 ~ +85
Standard Package Size	mm	Φ5.5 × 35

Wavelength Band Matching Table

Model Code	Pass Band (nm)	Reflect Band (nm)
T1064/R980	1020~1080	960~990
T1550/R980	1520~1580	960~990
T1550/R1064	1520~1580	1020~1080
T1550/R1310	1530~1600	1270~1350
T1550/R1480	1535~1580	1470~1490
T2000/R1550	1950~2050	1530~1570

Important Notes

The above specs apply to bare fiber devices. Equipped with connectors: Insertion Loss +0.3dB, Return Loss -5dB, Extinction Ratio -2dB.
For high power above 10W, heat sink packaging is mandatory.
Pulse signal application: Please provide pulse energy and peak power for customized design.

5. Ordering Code Explanation

Order Format: PMFWDM-XXXX-XX-XX-X-XX-XX-XX-XX-XX

Code Position	Definition	Optional Options
① Wavelength Combination	Dual wavelength pair	0698=T1064/R980; 5598=T1550/R980; 5564=T1550/R1064; 5531=T1550/R1310; S=Custom Specify
② Working Polarization Axis	Polarization axis design	B=Both axes working; F=Slow Axis only, Fast Axis blocked
③ Com & Pass Port Fiber	PM fiber type	PM980 / PM1550 / PM1060 / PM1950 / S=Custom
④ Reflect Port Fiber	Fiber type	PM980 / PM1550 / PM1060 / PM1950 / SMF-28E / S=Custom
⑤ Power Rating	Max CW power	0L=0.5W; 01=1W; 02=2W; higher power customizable
⑥ Package Size	Housing dimension	S1=Φ5.5×35mm; S=Custom size
⑦ Pigtail Type	Fiber protection	00=Bare fiber; 09=900μm loose tube
⑧ Fiber Length	Pigtail length	08=0.8m; 10=1m; S=Custom length
⑨ Connector Type	End connector	FA=FC/APC; FP=FC/UPC; SA=SC/APC; SP=SC/UPC; S=Custom connector

Custom Service Support

Custom wavelength combinations beyond standard series
Custom PM fiber / single-mode fiber matching
Custom fiber length, loose tube, cable structure
All fiber optic connectors (FC, SC, LC, ST etc.)
High-power heat sink packaging for 10W+ laser
Special design for pulse laser application

6. Dimensions

PM Filter WDM Polarization Maintaining WDM Filter with Ultra Low Insertion Loss High Polarization Extinction Ratio and Multiple Wavelength Combinations 0

7. Why Choose Gezhi Photonics PM Filter WDM?

Professional manufacturer focusing on PM fiber passive components for over years
Strict optical performance testing to guarantee low loss & high isolation
Stable thermal performance for long-term outdoor & industrial use
Flexible customization for fiber laser, telecom & CATV projects
Competitive factory direct wholesale price for bulk orders
Fast lead time & reliable after-sales technical support
Complete technical datasheet & test report provided for each batch

8. FAQ

Q1: What’s the difference between PM Filter WDM and ordinary WDM?

A: PM Filter WDM uses polarization-maintaining fiber, which can maintain linear polarization state of light, suitable for fiber laser, polarization-sensitive optical systems; ordinary WDM only uses single-mode fiber without polarization retention function.

Q2: Can you support high power above 10W?

A: Yes. We design heat sink packaging for high-power applications over 10W CW. Please inform us of working power when inquiry.

Q3: Do you offer customized wavelength models?

A: Yes. If our standard wavelength combinations cannot meet your demand, we can develop custom wavelength PM Filter WDM according to your requirements.

Q4: What’s the loss increase when adding fiber connectors?

A: Devices with connectors will add 0.3dB insertion loss, reduce return loss by 5dB and drop extinction ratio by 2dB compared to bare fiber versions.

9.Our Service

Custom design, bulk wholesale, sample order, technical support
