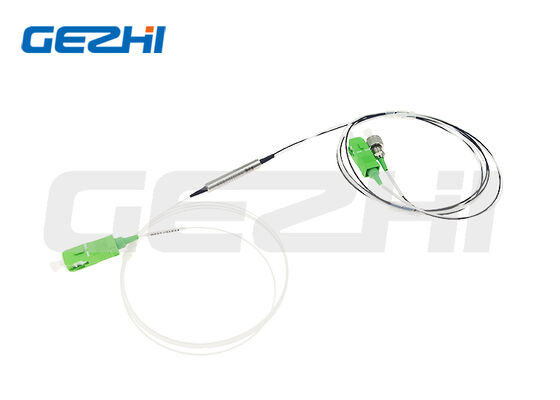

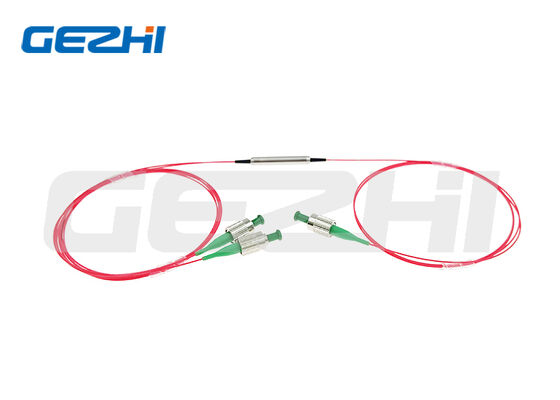

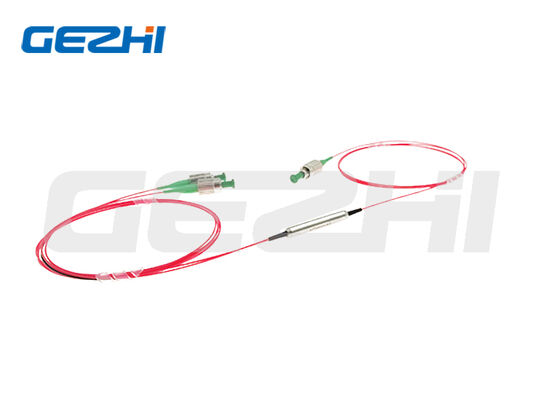

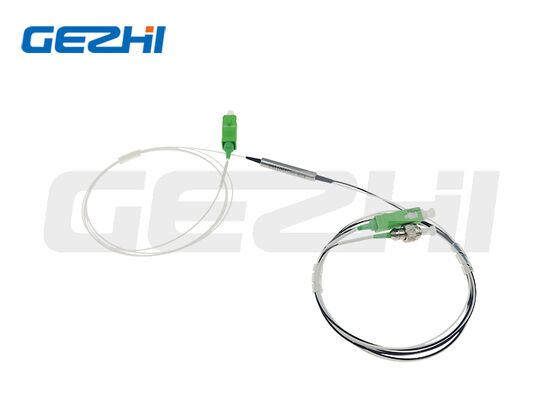

1×2 PM1550 DWDM Polarization Maintaining Device with 1550nm Wavelength, Low Insertion Loss, and High Extinction Ratio

Name: 1×2 PM1550 DWDM Polarization Maintaining Device with 1550nm Wavelength, Low Insertion Loss, and High Extinction Ratio
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 1×2 PM1550 DWDM-Gerät
Price: 638.00 USD
Availability: InStock

Markenbezeichnung:	GEZHI or OEM
Modellnummer:	1×2 PM1550 DWDM-Gerät
MOQ:	1 Stk
Preis:	US$288-US$988
Zahlungsbedingungen:	T/T, Western Union

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China

Zertifizierung:

CE RoHS,ISO9001

Dokumentieren:

1x2 PM DWDM.pdf

Wellenlänge:

1550 nm

Fasertyp:

PM1550

Kanalabstand:

50 GHz / 100 GHz / 200 GHz

Einfügedämpfung:

≤1,0 dB / ≤0,8 dB / ≤0,8 dB

Löschungs-Verhältnis:

≥20dB

Paketabmessungen:

Φ5,5×35mm

Verpackung Informationen:

Papierbox

Versorgungsmaterial-Fähigkeit:

5000 Stück pro Monat

Beschreibung des Produkts

1×2 PM1550 DWDM Polarization Maintaining DWDM Device

1. Product Introduction

The 1×2 Polarization Maintaining Dense Wavelength Division Multiplexer (PM DWDM) is a self-developed polarization-maintaining passive optical device from Gezhi Photonics. Designed in strict accordance with ITU standard wavelength grid, it adopts precision optical coating and polarization-maintaining fiber coupling technology to realize splitting/combining of single-channel optical signals while fully preserving the polarization state of incident light.

Featuring low insertion loss, high return loss, high extinction ratio and excellent thermal drift stability, the component supports three standard ITU channel spacings: 50GHz, 100GHz and 200GHz. It handles continuous wave power from 0.3W to 5W, with customized heat sink packaging available for high-power applications over 10W. Widely deployed in polarization-sensitive optical communication systems including CATV transmission, backbone WDM systems and EPON/GPON optical access networks.

2. Key Features & Typical Applications

Key Features	Typical Applications
Low Insertion Loss	CATV Optical Transmission Systems
High Return Loss	Backbone Dense WDM Transmission Systems
High Extinction Ratio	EPON / GPON Passive Optical Access Networks
Excellent thermal stability for both wavelength and insertion loss	Precision optical test systems requiring stable polarization
Multiple channel spacing options: 50GHz / 100GHz / 200GHz	Precision optical test systems requiring stable polarization
Multiple CW power handling grades; heat sink package for high-power use	Continuous & pulsed laser beam splitting/combining for industrial high-power scenarios
Compact standard metal package: Φ5.5×35mm, easy for system integration
Customizable pigtail, fiber length and fiber connectors; 1×N PM DWDM modules available on request

3. Main Specifications

Parameters	Unit	50GHz	100GHz	200GHz
Channel Spacing	GHz	50	100	200
Channel Passband (@-0.5dB)	nm	>0.1	>0.22	>0.5
Insertion Loss (Pass Port)	dB	≤1.0	≤0.8	≤0.8
Insertion Loss (Reflect Port)	dB	≤0.7	≤0.5	≤0.5
Isolation (Pass Port)	dB	≥25	≥25	≥25
Isolation (Reflect Port)	dB	≥13	≥13	≥13
Extinction Ratio	dB	≥20	≥20	≥20
Return Loss	dB	≥50	≥50	≥50
Wavelength Thermal Stability	nm/℃	≤0.003	≤0.003	≤0.003
Insertion Loss Thermal Stability	dB/℃	≤0.005	≤0.005	≤0.005
Max CW Power Handling	W	0.3 / 1 / 5 (Optional)	0.3 / 1 / 5 (Optional)	0.3 / 1 / 5 (Optional)
Tensile Load	N	≤5	≤5	≤5
Operating Temperature	℃	-5 ~ +75	-5 ~ +75	-5 ~ +75
Storage Temperature	℃	-40 ~ +85	-40 ~ +85	-40 ~ +85
Standard Package Dimension	mm	Φ5.5×35	Φ5.5×35	Φ5.5×35

Notes

The above specifications apply to bare devices without connectors. If fitted with connectors, insertion loss will increase by 0.3dB, return loss will decrease by 5dB, and extinction ratio will drop by 2dB.

Heat sink package is available for applications with power above 10W.

For pulsed laser applications, please inform us of pulse energy and peak power in advance.

Custom 1×N PM DWDM modules are available; please contact Gezhi Photonics for solutions.

4.Ordering Code Definition Table

Model Format: PMDWDM-①-②-③-④-⑤-⑥-⑦-⑧-⑨

	Optional Code & Corresponding Description
① Channel Spacing	050=50GHz; 100=100GHz; 200=200GHz
② Center Wavelength	C21=1560.61nm; C23=1558.98nm; S=Customer specified wavelength
③ Working Axis	B=Both slow & fast axis workable; F=Only Slow Axis, Fast Axis blocked
④ Fiber Type	PM1550; S=Custom specified fiber
⑤ Power Handling	0L=0.3W; 01=1W; 02=2W
⑥ Package Dimension	S1=Φ5.5×35mm; S=Custom package size
⑦ Pigtail Type	00=Bare fiber; 09=900μm loose tube
⑧ Fiber Length	08=0.8m; 10=1m; S=Custom length
⑨ Connector Type	FA=FC/APC; FP=FC/UPC; SA=SC/APC; SP=SC/UPC; S=Custom connector

5.Package type

6.About us

Gezhi Photonics Co.,Ltd own 1500square meter operating workshop , use Clean, No Dust ,Tidy ,Planned room . with 20years experience technical team which made GEZHI products Reliable, Stable and High Qualified. Also, With 160 full experience workers in Fast, Efficient, Qualified production. Its increase GEZHI products Capacity, with High quality and reasonable, competitive price. Gezhi Photonics keeps on cooperating with international and national Telecom Operator, Equipment Supplier, universities, scientific and research company as well as taking advantage of its social talent , information and technology to benefit Enterprise Development . Owing to our excellent engineering services, custom design, technical support, product review , rapid sample prototyping and mass production fast delivering for our customers, we service more than 30 countries and regions including Europe, USA, Southeast Asian, Middle East, etc.

1×2 PM1550 DWDM Polarization Maintaining Device with 1550nm Wavelength, Low Insertion Loss, and High Extinction Ratio 3

7.Our Certificate
