| Brand Name: | GEZHI or OEM |
| Modellnummer: | GZ-AWG -40CH |
| MOQ: | 1pc |
| Preis: | Verhandlungsfähig |
| Payment Terms: | T/T, Western Union |

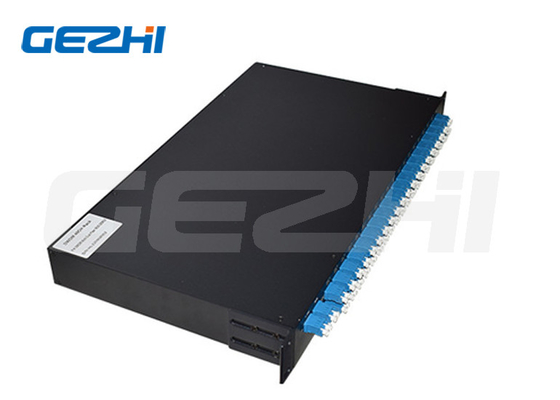

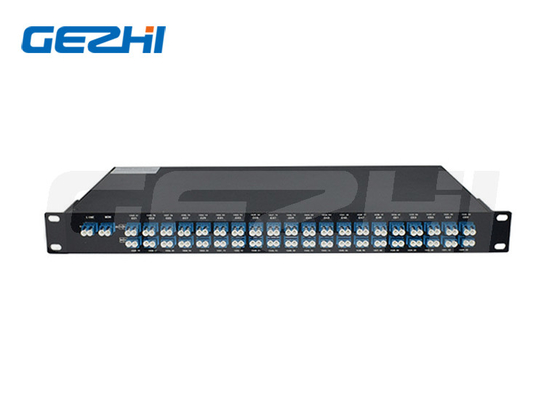

1U Rack Mount DWDM Mux Demux Modul 40CH AAWG Ein- / Doppelfaser LC / UPC-Anschluss
Beschreibung des Produkts
Gezhi's 100G AAWG DWDM-Ausrüstung Gaussian Type Dual Fiber ist ein eigenständiges passives optisches Modul mit hoher Dichte, geringen Verlusten und basiert auf einem thermischen AWG mit Gaussian Monolithic Technology.
Eigenschaften
Anwendungen
Wellenlängenplan
| Nein. | Frequenz (THz) | WL (nm) | Nein. | Frequenz (THz) | WL (nm) | ||
| 1 | C60 | 196.00 | 1529.553 | 21 | C40 | 194.00 | 1545.322 |
| 2 | C59 | 195.90 | 1530.334 | 22 | C39 | 193.90 | 1546.119 |
| 3 | C58 | 195.80 | 1531.116 | 23 | C38 | 193.80 | 1546.917 |
| 4 | C57 | 195.70 | 1531.898 | 24 | C37 | 193.70 | 1547.715 |
| 5 | C56 | 195.60 | 1532.681 | 25 | C36 | 193.60 | 1548.515 |
| 6 | C55 | 195.50 | 1533.465 | 26 | C35 | 193.50 | 1549.315 |
| 7 | C54 | 195.40 | 1534.250 | 27 | C34 | 193.40 | 1550.116 |
| 8 | C53 | 195.30 | 1535.036 | 28 | C33 | 193.30 | 1550.918 |
| 9 | C52 | 195.20 | 1535.822 | 29 | C32 | 193.20 | 1551.721 |
| 10 | C51 | 195.10 | 1536.609 | 30 | C31 | 193.10 | 1552.524 |
| 11 | C50 | 195.00 | 1537.397 | 31 | C30 | 193.00 | 1553.329 |
| 12 | C49 | 194.90 | 1538.186 | 32 | C29 | 192.90 | 1554.134 |
| 13 | C48 | 194.80 | 1538.976 | 33 | C28 | 192.80 | 1554.940 |
| 14 | C47 | 194.70 | 1539.766 | 34 | C27 | 192.70 | 1555.747 |
| 15 | C46 | 194.60 | 1540.557 | 35 | C26 | 192.60 | 1556.555 |
| 16 | C45 | 194.50 | 1541.349 | 36 | C25 | 192.50 | 1557.363 |
| 17 | C44 | 194.40 | 1542.142 | 37 | C24 | 192.40 | 1558.173 |
| 18 | C43 | 194.30 | 1542.936 | 38 | C23 | 192.30 | 1558.983 |
| 19 | C42 | 194.20 | 1543.730 | 39 | C22 | 192.20 | 1559.794 |
| 20 | C41 | 194.10 | 1544.526 | 40 | C21 | 192.10 | 1560.606 |
|
|
